Product description

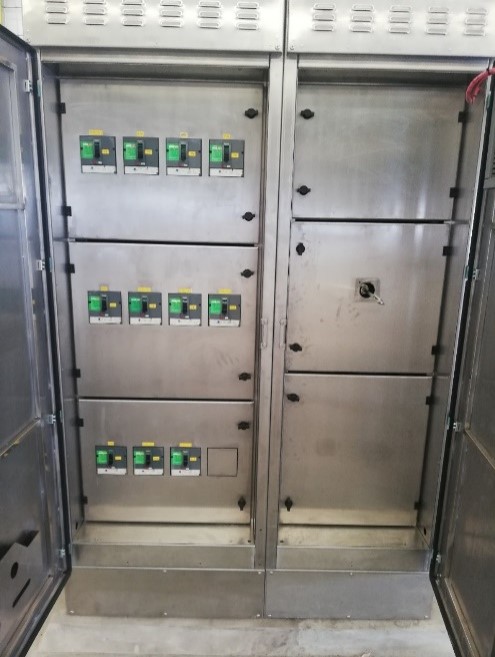

Distribution Board (DB) is a distribution board used in low-voltage networks, rated current can be up to 1000 A, providing power for a group of equipment or terminals (pumps, engines, machines, etc.). The DB distribution low voltage switchboard has a standard design structure, creating the most favorable conditions for selection for application in projects.
*Advantage:
Large space for easy wiring in and out
The electrical circuits are clearly indicated
Expandable connection possible
DB distribution cabinets are manufactured on a closed and advanced line
Directly designed by the talented hands of a team of skilled engineers
The system meets the international electrical specifications and standards IEC
Safe, stable, easy to install and operate
The structure of the cabinet is suitable according to the requirements of each project
Compact size, highly aesthetic
DB distribution cabinets are usually installed in operating rooms of industrial buildings, factories, industrial workshops, commercial centers, apartments…
VTSAuto products customized according to customer needs

+ SPECIFICATION
Reference standard	IEC 61439-1/2
Form	1, 2a, 2b, 3a, 3b, 4a, 4b
Ingress Protection	IP32 to IP54
Ambient temperature	-50OC to + 40OC
Rated isolation voltage (Ui)	1000V
Rated operating voltage (Ue)	415V
Rated frequency (F)	50/60HZ
Rated current (In)	1000A
Rated short-time current (Icw) 3s	65kA
Earthing diagram	TN-S, TN-C
Height (H)	300,400, 500,600, 700, 800, 900, 1000, 1100, 1200, 1300,1400 , 1500, 1600, 1700, 1800
Width (W)	500/600/700/800/900/1000
Depth (D)	200, 250, 300, 350, 400, 450, 500, 600
Color	RAL 7035/ INOX
Electric wiring	Top/bottom
Material	Sheet steel
Operating location	Indoor/Outdoor

Distribution Board (DB) is a distribution board used in low-voltage networks, rated current can be up to 1000 A, providing power for a group of equipment or terminals (pumps, engines, machines, etc.). The DB distribution low voltage switchboard has a standard design structure, creating the most favorable conditions for selection for application in projects.

At VTSAuto, we offer a range of Distribution Boards (DB) with sophisticated options for power conditioning and monitoring.

Our free-standing or wall mounting Distribution Boards are either manufactured to suit individual customer requirements or can be selected from a range of standard designs that have been tested and proved by installation.
